Case 1: Combined RCP8 and radar server computer

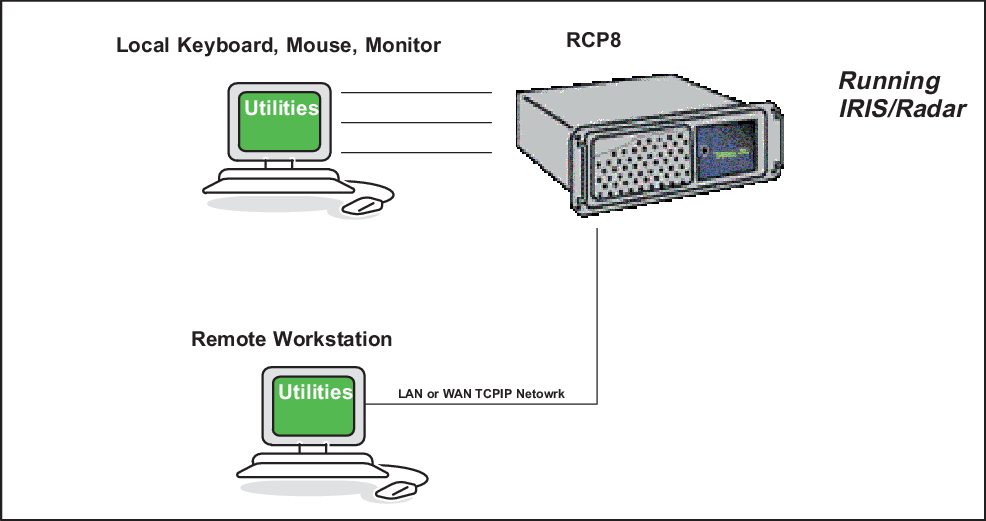

Figure 1. Network architecture - Combined RCP8 and radar server computer

Most applications use this configuration.

RCP8 and IRIS/Radar software run on the same machine. Access from a remote workstation is done by X-Window export.

In the case of a slow link to the remote workstation, AntExport can be run on RCP8 and the radar server computer to service a low-speed connection to a remote workstation.
