Configuring HydroClass Names

For the color scale for HydroClass data, each numerical value corresponds to an index of a discrete class.

You can customize the class indices displayed in the HydroClass Name Editor by defining a name for each class (text to display on the legend).

The meanings (associations with a class) of the HClass numerical values is specific to each classification method, as described in sig_data_types.h.

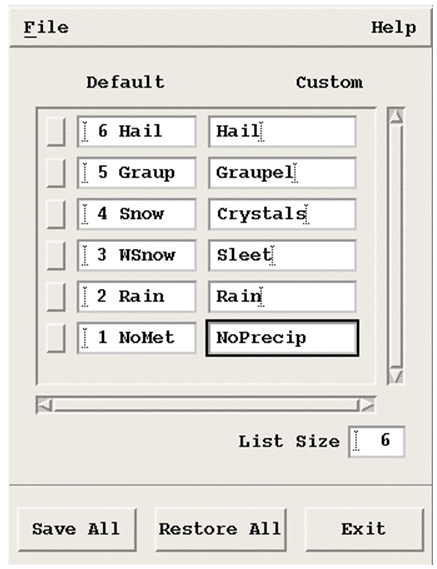

Figure 1. HydroClass Name Editor
In the HydroClass Name Editor, select the IRIS default name on the left column, and type your own custom name on the right.

Names are limited to 8 characters. You can name a new class or change the language of an existing class.
