IFDR10 connectors

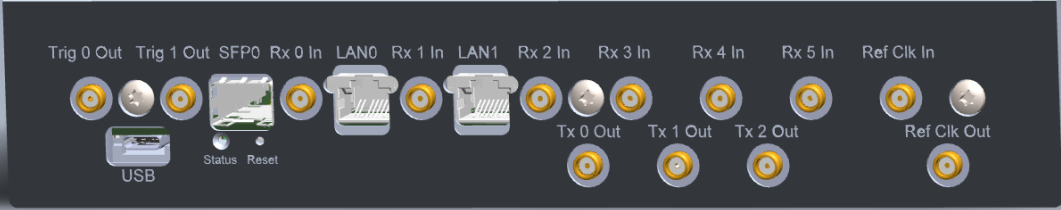

IFDR10 front connector panel

Label	Type	Description
Trig 0 Out	SMA	General purpose trigger I/O
Trig 1 Out	SMA	General purpose trigger I/O
SFP 0	SFP+	10 Gbps fiber optic network link
Rx 0 In	SMA	Direct IF input functionally assigned with ifd_settings
LAN 0	RJ-45	1 Gbps Ethernet
Rx 1 in	SMA	Direct IF input functionally assigned with ifd_settings
LAN1	RJ-45	1 Gbps Ethernet
Rx 2 in	SMA	Direct IF input functionally assigned with ifd_settings
Rx 3 in	SMA	Direct IF input functionally assigned with ifd_settings
Rx 4 in	SMA	Direct IF input functionally assigned with ifd_settings
Rx 5 in	SMA	Direct IF input functionally assigned with ifd_settings
Ref Clk in	SMA	Reference clock input
USB	USB-C	Used for manufacturing purposes. Currently no field applications.
Tx 0 out	SMA	Direct Transmit IF output
Tx 1 out	SMA	Direct Transmit IF output
Tx 2 out	SMA	Direct Transmit IF output
Ref Clk out	SMA	Reference clock output
Status	LED indicator light	Reserved for future development
Reset	Switch	Tactile, momentary on switch

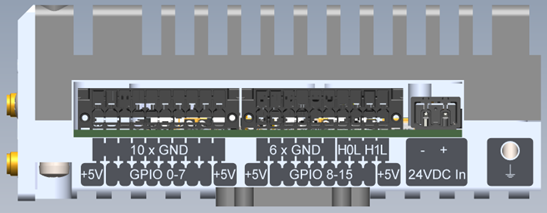

IFDR10 side connector panel

Label	Type	Description
+5V	Phoenix Contact DMC 1,5/10-G1F-3,5-LR P20THR	5 V voltage supply
IO0-IO15	Phoenix Contact DMC 1,5/10-G1F-3,5-LR P20THR	General purpose input/output
CAN0 H and L	Phoenix Contact DMC 1,5/10-G1F-3,5-LR P20THR	Can bus 0
CAN1 H and L	Phoenix Contact DMC 1,5/10-G1F-3,5-LR P20THR	Can bus 1

IFDR10 side connector panel pinout

GND	GND	GND	GND	GND	GND	GND	GND	GND	GND
+5V	IO0	IO1	IO2	IO3	IO4	IO5	IO6	IO7	+5V
						CAN0		CAN1
GND	GND	GND	GND	GND	GND	H	L	H	L
+5V	IO8	IO9	IO10	IO11	IO12	IO13	IO14	IO15	+5V
