Ascope
Menu

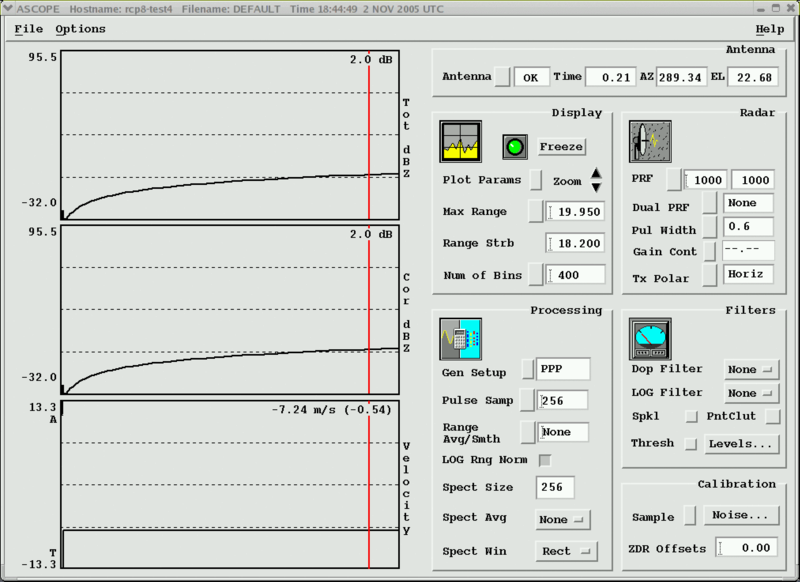

Figure 1. Ascope Utility
- Antenna Status
- Shows information about the antenna status.
- Display Status
- Freezes and resumes the display and set display parameters, such as the
plotted data.
- Radar Status
- Shows radar status information, such as the PRF and pulse width
settings.
- Processing Status
- Shows information about the processing mode and other processing
options.
- Filters
- Sets the Doppler, LOG, Speckle, and Threshold filters.
- Calibration
- Shows information about DSP calibration. You can take noise samples or set
A/D converter offsets and gains.
