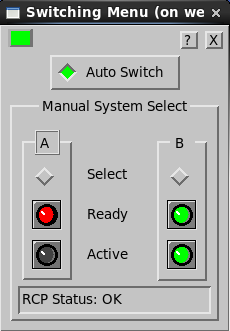

System A in Fault, System B Running
| Auto Switch Green | ||
|---|---|---|
| A | B | |
| Off | Select | Off |
| Red/Gray | Ready | Green/Gray |
| Off | Active | Green |
System A has faulted as indicated by the red Ready light. System B is now running.
Action
Use the Radar Status Menu for system A to determine the nature of the fault. Check:
- Subsystem Status of RVP and RCP (lower right)
- BITE status (summary display and access lower left)
- Message menu (top middle)
