Bitex Data Point Configuration

Bitex supports the following types of data points:

  • Status data points (information received from the RCP)
  • Status QBITE point (from the RCP)
  • Control data points (information sent to the RCP)

Status points are passive (accept no user input). They graphically display status information as reported by the RCP.

Control data points are active and include a button for toggling the status. The status of the button is sent to the RCP. The RCP decodes this uses this state to affect electrical outputs.

Figure 1. Status Data Point Example
Figure 2. Status QBITE Data Point Example

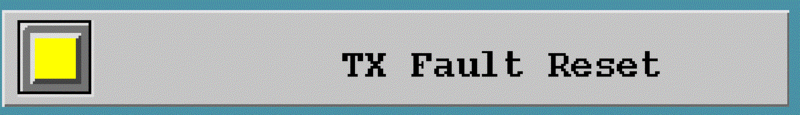

Figure 3. Control Data Point Example
