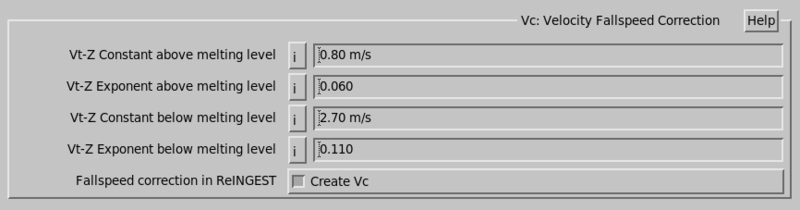

Velocity Fallspeed Correction

Vt-Z Constant above melting layer

These questions allow you to specify Vt-Z relationship above and below the melting layer, where Vt is the terminal velocity of the precipitation.

We use an exponential equation like: $V t = C o n s \tan t Z^{E x p o n e n t}$

See the NDOP product in IRIS Product and Display Guide (M212928EN) .

Fallspeed correction in ReINGEST

If enabled, then Vc using fallspeed correction is computed at reingest time, overriding any previous values.

The recommended setting is Disabled, if fallspeed correction is required specify it in the task configuration.

Note that if either Fallspeed correction in ReINGEST or Velocity unfolding in ReINGEST are enabled, Vc is made at reingest time.
