Dale Ribbon Display Hardware Installation

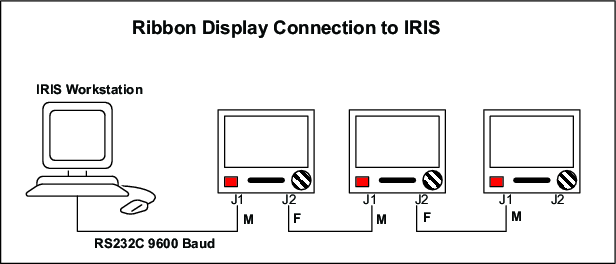

Up to 8 Dale ribbon displays can be "daisy-chained" to an IRIS workstation as shown in the following figure.
The M and F notation refers to the cable end (DB25M or
DB25F).
| J2 | J1 | Signal |
|---|---|---|
| 1 | 1 | GND (shield) |
| 3 | 2 | Receive Data |
| 2 | 3 | Transmit Data |
| 7 | 7 | GND |
