RVP10 in normal real-time operation

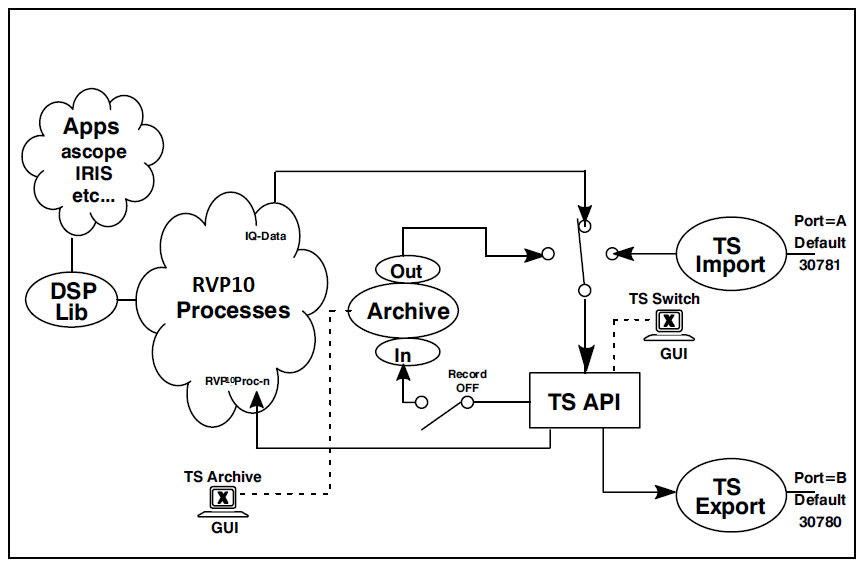

Figure 1. RVP10 in normal real-time operation

In this case, the TS Switch is set to write real-time data from the IQ-Data process to the TS API.

RVP10Proc-n extracts time series data and processes it. The configuration information is obtained from and data are passed to user applications through the DSP Lib functions. The tsexport process, if started, can extract data simultaneously from the TS API.

Utility settings

  • TS Switch: Local RVP10
  • TS Archive: N/A
