TS playback on a local RVP10

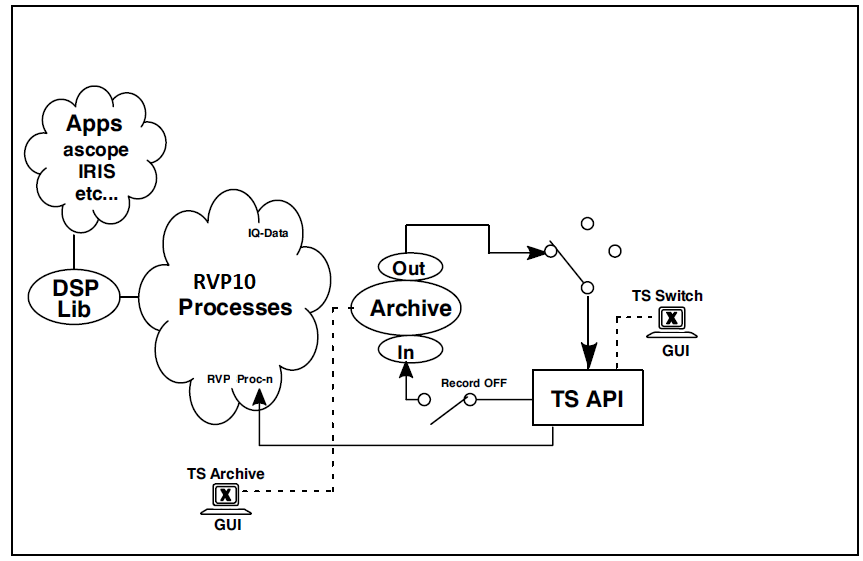

Figure 1. TS playback on local RVP10

In this example, the TS Switch is set to write data from the tsarchive to the TS API. RVP10Proc-n processes then reads the time series data from the API.

This is the same as the real-time normal operation case shown in RVP10 in normal real-time operation, except that the archive is the source rather than the real-time operation.

The difference is that applications that use the time series must know that the data are playback rather than real time data. This information as well as all of the required housekeeping data are part of the time series data format.

Utility settings

RVP10:

  • TS Switch: Local Archive
  • TS Archive: Play
