TS recording on a local RVP

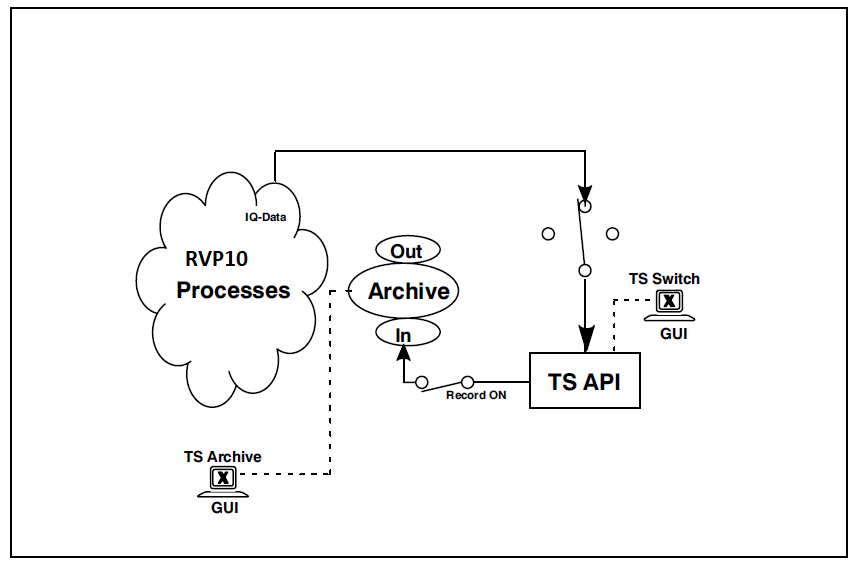

Figure 1. TS record on local RVP10

In this example, the TS Switch is set to place the real-time IQ values from the IQ-Data Process into the TS API. These are extracted and recorded to local disk by the tsarchive process.

While TS data are being recorded, RVP10 may still do its normal data processing tasks, as shown in RVP10 in normal real-time operation .

Utility settings

  • TS Switch: Local RVP10
  • TS Archive: Record

This configuration records to a local disk on RVP10. Record to a dedicated data partition. DO NOT record to the “/” partition. This is because if the “/” partition fills up, the system crashes.

If the separate data partition fills up, then the system stops recording, but otherwise functions normally.
