TS recording on separate archive host

This is the recommended recording configuration for TS recording.

The advantage of having a separate archive host is that it is easy to install a large disk that is dedicated to time series recording without having record/playback/backup operations interfere with the normal operation of an RVP10. There can be multiple archive hosts on the network.

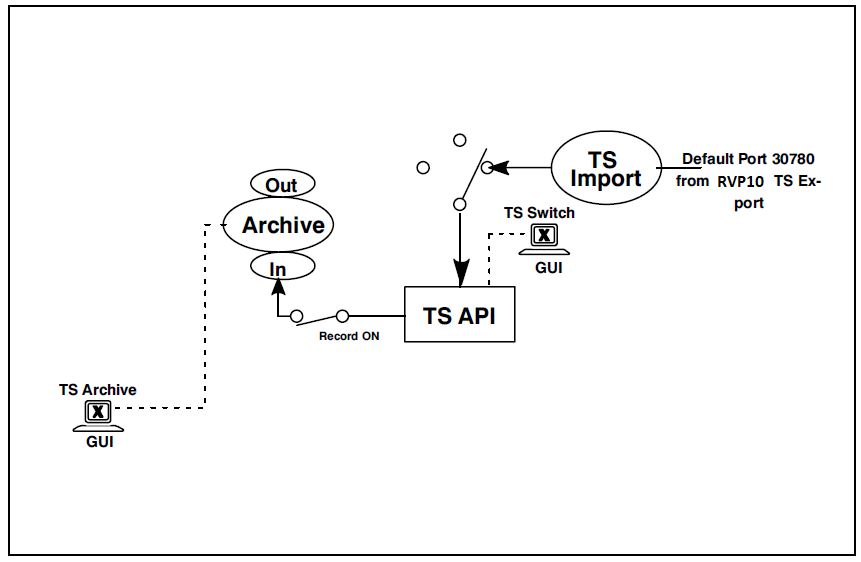

Figure 1. TS recording on separate archive host

In this case, the TS Switch is set to write IQ data from the tsimport network source. Typically this is a 100 or 1000 Base T LAN connection. The time series are placed on the network through UDP broadcast by the tsexport process on a networked RVP10.

Utility settings

RVP10:

  • TS Switch: Local RVP10
  • TS Archive: N/A

Archive host:

  • TS Switch: Network
  • TS Archive: Record
