VAD Output Options

During display, you can select one or all of the elevation angles in the VAD product.

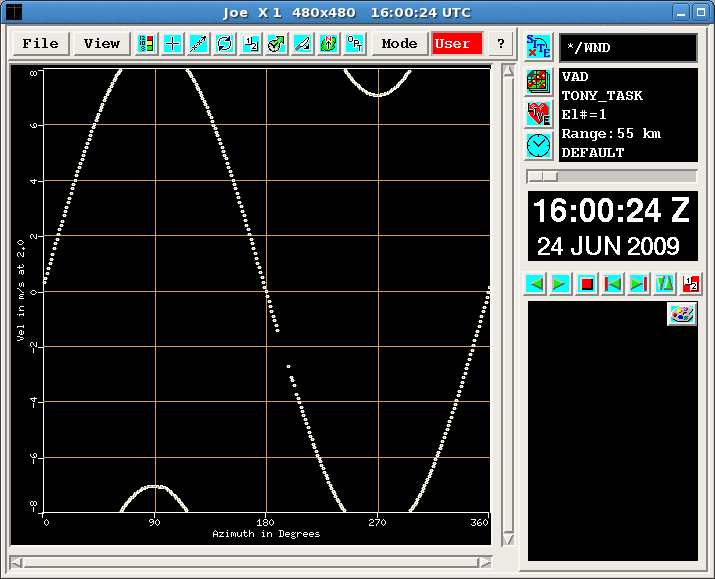

The following figure shows an example of a single angle being displayed. This data has not been unfolded.

Figure 1. Example of Velocity Azimuth Display
Figure 2. VAD Output Tool
All Heights/1 Height

The IRIS VAD products consist of a plot of velocity for all azimuths. You can choose to display just one plot of one height, or many plots showing all the heights.

Height

If you have selected 1 height, use this slide bar, or the cursor keys to move up and down through the list of heights.

Plot Max

Configure here the maximum velocity shown on the plots.
